Drilling Mud Pump Fluid End Module

Drilling Mud Pump Fluid End Module

Drilling Mud Pump Fluid End Module is crucial fluid end parts, which is forged by high-quality alloy steel 35CrMo. The Mud Pump Fluid End Module is designed and manufactured as per API 7K standard. Strict ultrasonic nondestructive testing and hydrostatic testing are implemented to ensure the highest quality criteria without any defects.

  • Brand :

    RG
  • Place of Origin :

    Henan, China
  • Type :

    I and L
  • Certification :

    API 7K
  • Supply Ability :

    200 pcs per month
  • Application :

    Drilling Mud Pump
  • Material :

    35CrMo
  • Model :

    F500, F800, F1000, F1300, F1600, F1600HL

Description

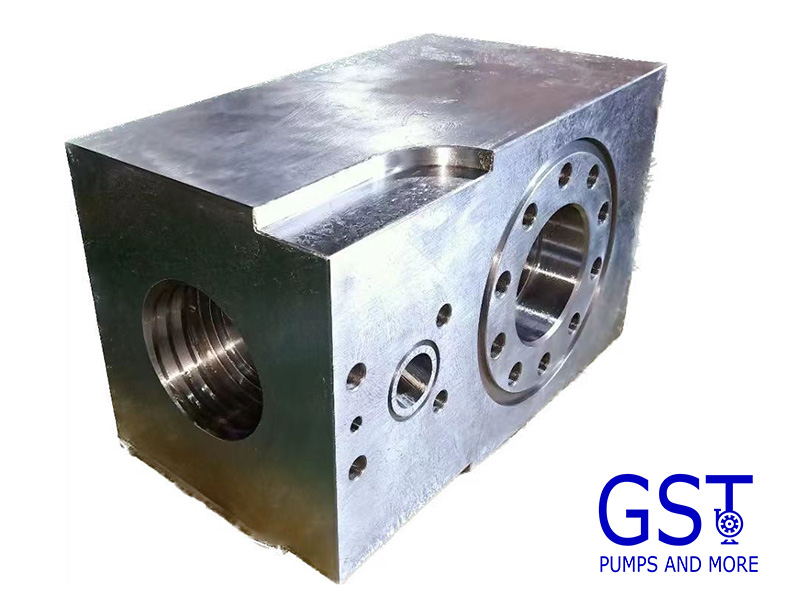

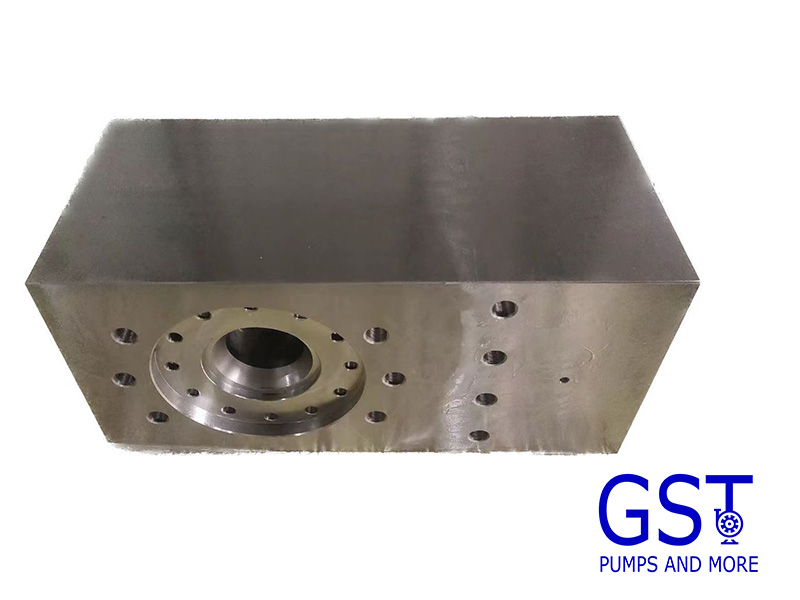

I Shaped Fluid End Module

Our fluid end modules are completely interchangeable with the OEM, such as National, Emsco, Gardner Denver, BOMCO, etc.

For regular 5000 psi applications of mud pump, I Shaped module, also known as "valve over valve" type module is the choice. The module blank is made from high quality forged alloy steel, typically 35CrMo (AISI 4135), then hardened and tempered to ensure enhanced plasticity and toughness, machined in vertical lathes under API 7K certificates.



L Shaped Fluid End Module

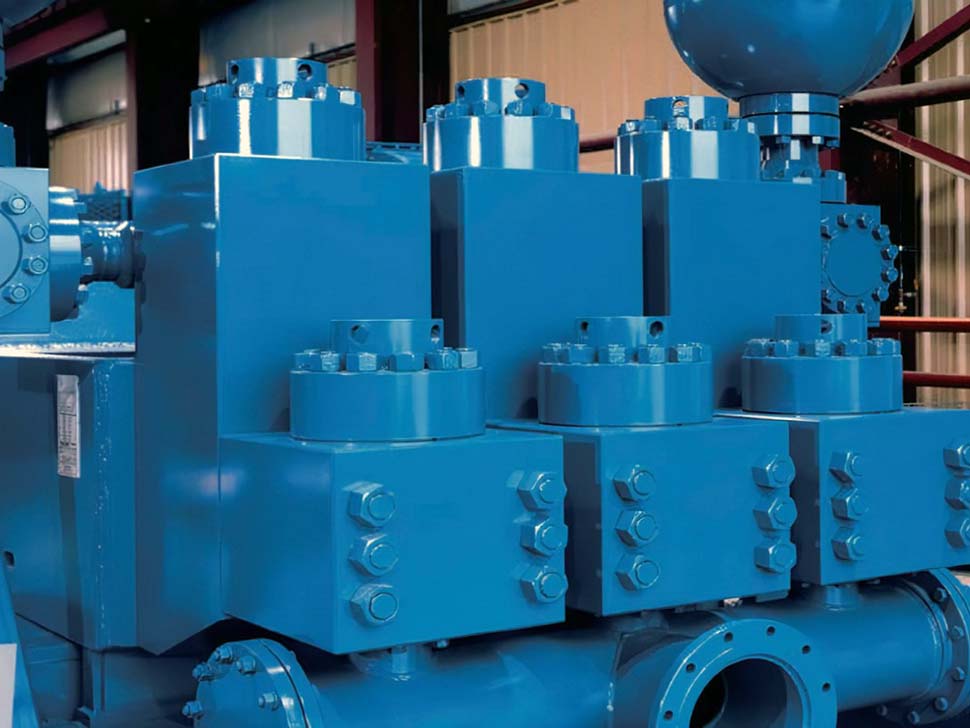

As for design pressure up to 7,500 psi, we offer two piece “L” shaped fluid ends modules.

The two-piece fluid end modules permit quick removal and installation.

The L-shaped two-piece fluid end was adopted into the market, because it was an obvious improvement over I shaped modules. Since the suction module is separate from the discharge module, it is convenient to replace the suction module when it wears out instead of replacing the entire fluid end.

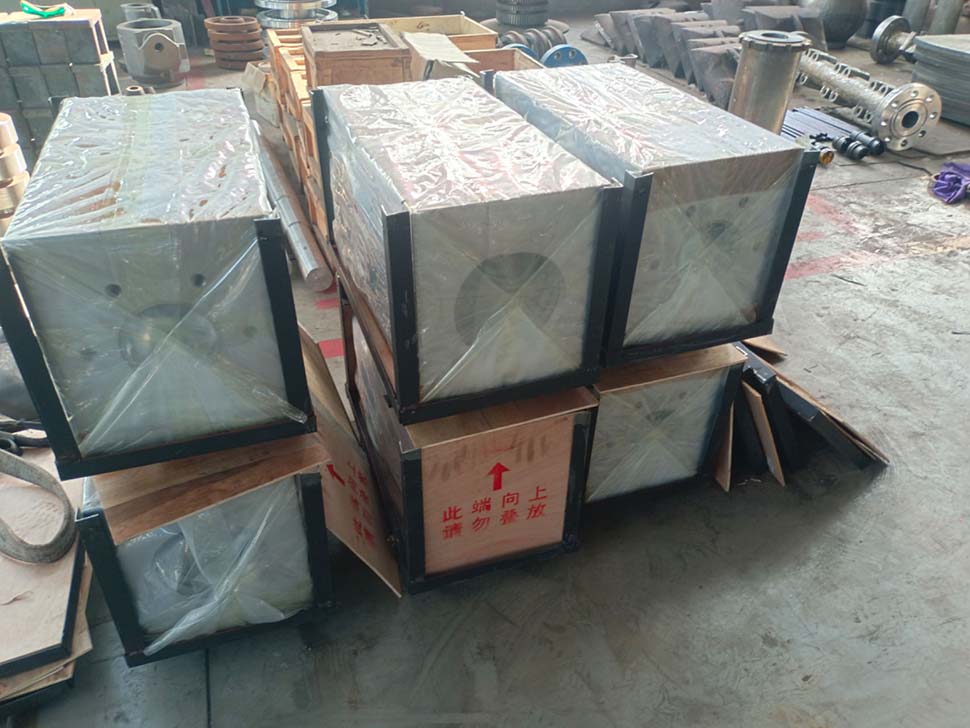

Packaging & Shipment

Packaging type: Steel frame

Exporting port: Tianjin, Shanghai



FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.



2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
