Product Details

Description

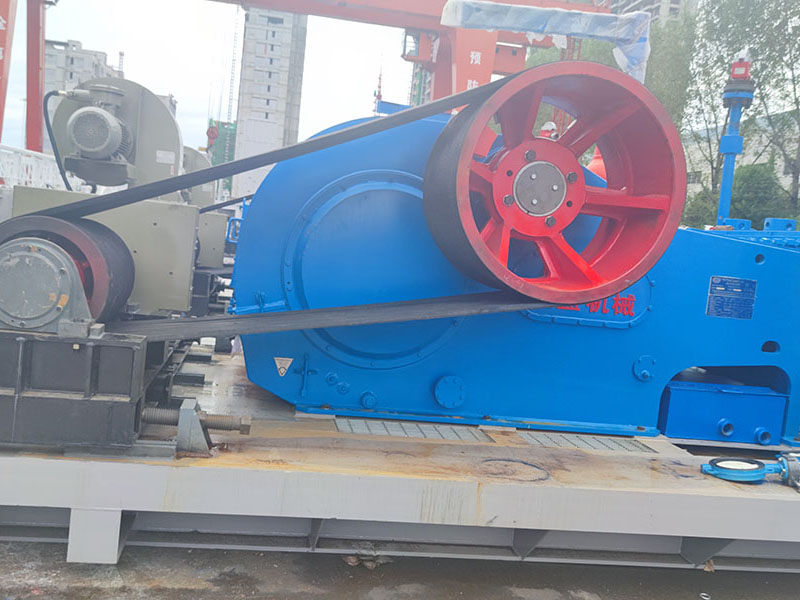

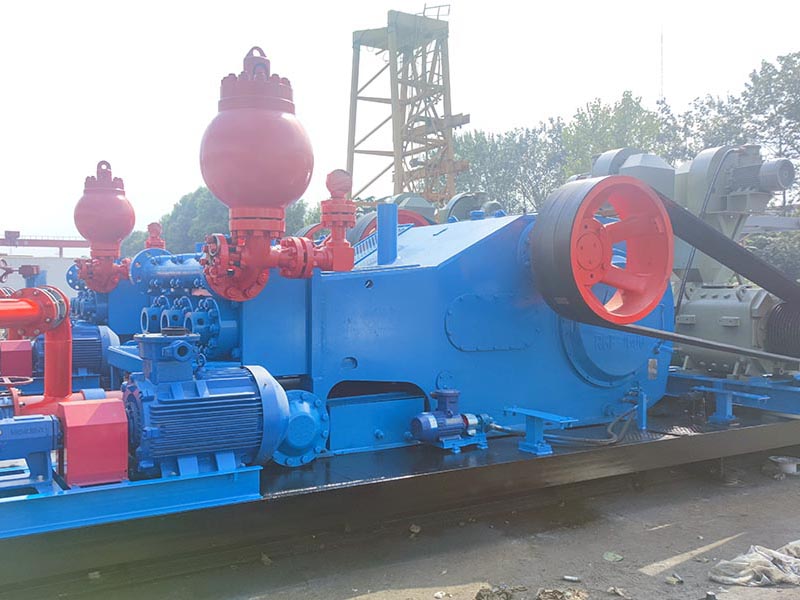

Electrical mud pump packages are powered by AC/DC electric motors, transmitted by ball cage universal joint, and finally the mud pumps are driven by belts or chains. The master skid could be made into conventional skid type or trailer type easy for transportation. As per request of user, rain shield, sand shield, cold protection devices could be configured.

Features

Design and manufacturing compliant with API 7K specification.
Efficient power transmission design, shift smoothly.
Shear pin safety relief valve as default, spring reset relief valve optional.
External electric oil lubrication pump available as per request.

Specifications

Package model	JBZ8AC	JBZ10AC	JBZ13AC	JBZ16AC	JBZ16DC
Pump model	F-800	F-1000	F-1300	F-1600	F-1600
Motor model	YJ23	YJC800	YJ31F4	YJ13A6	YZ800
Motor power, kW	600	800	1000	1200	800x2
Rated speed, rpm	1035	661	1000	1000	970
Transmission	Belt/Chain	Belt	Belt	Belt	Belt
Weight, kg	25000	26000	43000	45000	46000

Layout drawing

typical for JBZ16AC Mud pump package

Packaging & Shipment

Packaging type: Seaworthy packing

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
