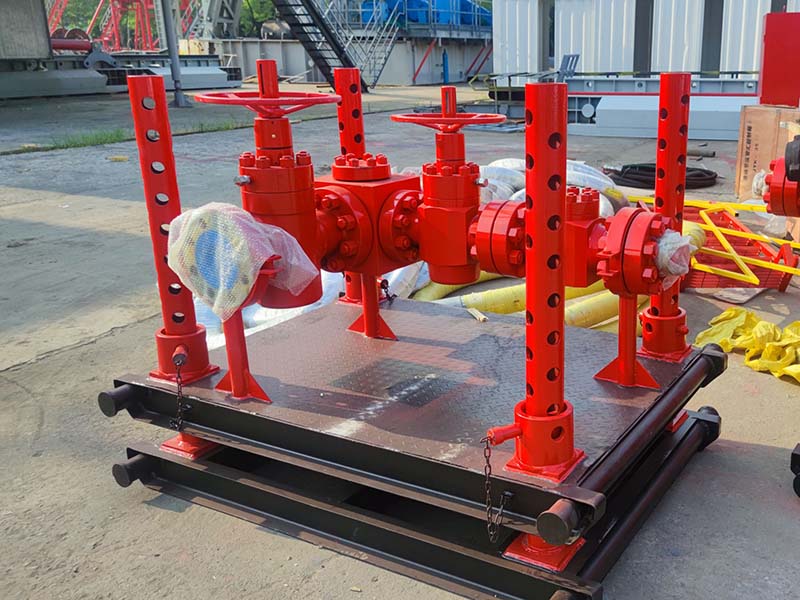

High Pressure Manifolds for Mud Circulation System

High Pressure Manifolds for Mud Circulation System

We can supply high pressure manifolds of standpipe, mud circulation, choke and kill, frac, cement, well testing. Our manifolds are available in pressure ratings upto 15,000 psi CWP, and in both standard and sour service.

  • Brand :

    Jielin
  • Place of Origin :

    Jiangsu, China
  • Type :

    Manifold
  • Certification :

    API 6A/16C
  • Supply Ability :

    10 sets per month
  • Application :

    Drilling, cementing, well control, fracutring
  • Material :

    Steel
  • Model :

    As per drawing

Mud Standpipe Manifolds

Our mud standpipe manifolds are designed and manufactured to customer requirements and are fully certified in accordance with API standards.



The mud standpipe manifold is installed downstream of the mud pumps with the purpose of diverting the flow of drilling fluids toward the drill line or drill string. An adjustable choke can be installed to bleed pressure off the drill pipe, to reduce shock when breaking circulation in wells where loss of circulation is a problem, and to bleed off pressure between BOPs during stripping operations. Pressure ratings up to 7,500 psi are available.



High Pressure Mud Circulation Manifolds

The high pressure mud circulation manifolds consist of mud gate valve, high pressure hammer union, tees, crosses, elbow, high pressure hose, pup joints and pressure gauges. The design and manufacturing conforms to API standards.



Choke and Kill Manifold

Choke and kill manifold are the important well control device for petroleum drilling to implement balanced drilling. It can effectively control kick and overflow, prevent pay zone contamination and increase rate of penetration.



Description

Choke manifold

Kill manifold

Model

JG-21JGS-35JGY-35JGS-70JGY-70

YG-21YG-35YG-70

Diameter of main bore and bypass bore

4-1/16″× 4-1/16,4-1/16″× 3-1/8″, 4-1/16″× 2-9/16″, 4-1/16″× 2-1/16″, 3-1/8″× 3-1/8″,3-1/8″× 2-9/16″,3-1/8″× 2-1/16″, 2-9/16″× 2-1/16″

Working pressure

3,000psi, 5,000psi, 10,000psi, 15,000psi,20,000psi

Working temperature

-20°F250°F

Working medium

Mud, oil, drilling fluid (including H2S)



Packaging & Shipment

Packaging type: Seaworthy Packaging

Exporting port: Tianjin, Shanghai



FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
