Centrifugal Pumps
Home Centrifugal Pumps

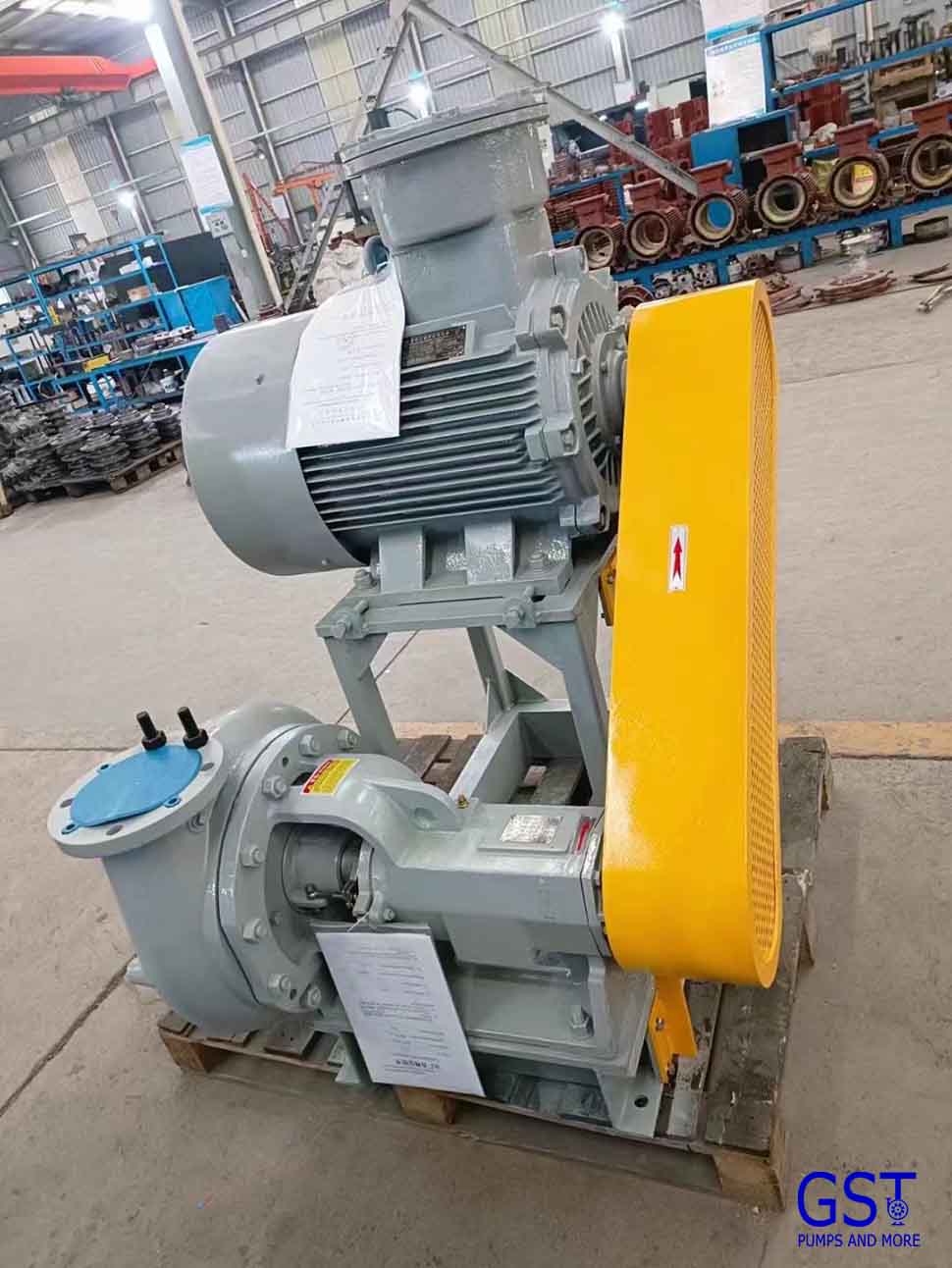

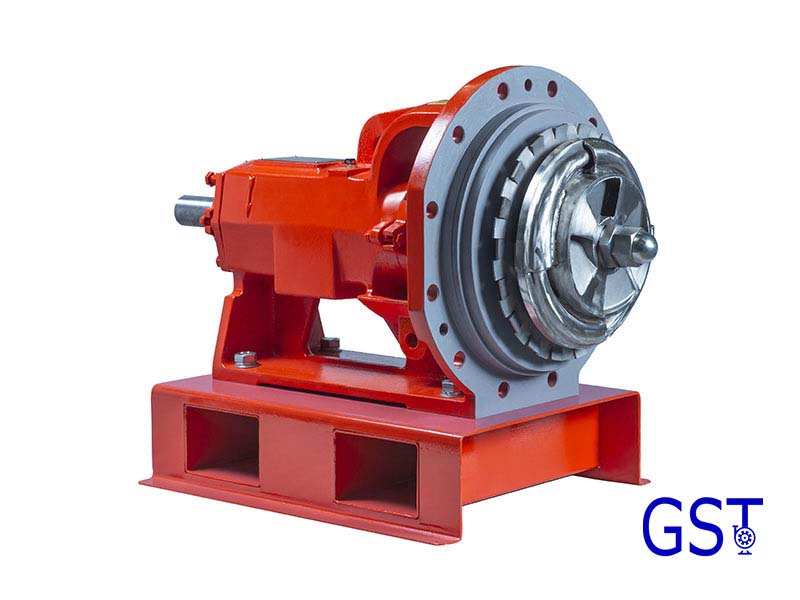

JQB Series Drilling Mud Shear Pump

JQB Series Drilling Mud Shear Pump

Drilling mud shear pump, also known as a JQB series mud shear pump, is an essential component in the mud solids control system.  It is used to increase the shear rate and energy of the drilling mud, which helps in mixing and conditioning the drilling mud.

  • Brand :

    GST
  • Place of Origin :

    Henan, China
  • Type :

    Single stage centrifugal with shear plate
  • Installation type :

    Side belt drive
  • Power Range :

    37~75 kW
  • Power Source :

    Electric motor
  • Certification :

    CNEX, IEC and ATEX as per request
  • Supply Ability :

    200 sets per month

Description

JQB series drilling mud shear pump is specialized pump to mix and shear polymers for drilling mud, which reduces the cost of mixing polymers and clays while improving mud properties.

The shear pump operates by using centrifugal force to accelerate the drilling fluid as it passes through the pump impeller and shear plate. This increased velocity causes shear forces that break down solids and improve the fluid's properties. The shear pump is typically placed after the solids control equipment to further process and prepare the drilling mud for efficient drilling operations.

 By enhancing the shear rate and mixing efficiency, a shear pump aids in fluid conditioning, reducing the viscosity, and improving the overall performance of the drilling fluid. It assists in maintaining proper mud properties, such as density and viscosity, which are crucial for drilling operations, wellbore stability, and effective cuttings removal.

 The specific design and configuration of drilling mud shear pumps may vary based on the requirements of the drilling operation and the characteristics of the drilling mud being used.



Features

  • High shear efficiency: Specialized impeller and shear plate, shear efficiency above 95%.
  • Long service life: Stainless steel for impeller and shear plate, high wear resistant cast iron for other flow passing parts.
  • Leakage free: Mechanical seal and packing seal both configured.



Specifications

Model

Capacity,

m³/h(gpm)

Head,

m(feet)

Impeller

rpm

Efficiency

Power, kW

Weight,

kg

%

Shaft power

Motor power

SB5×6-75

150 (660)

27 (88.6)

2110

95

39.4

75

1220

SB5×6-55

140 (616)

25 (82)

2015

95

34

55

1100

SB5×6-45

120 (528)

19 (62.3)

1760

95

22.2

45

960

SB5×6-37

120 (528)

19 (62.3)

1760

95

22.2

37

945

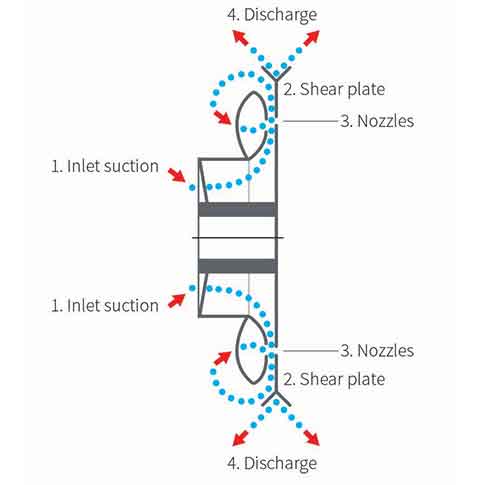

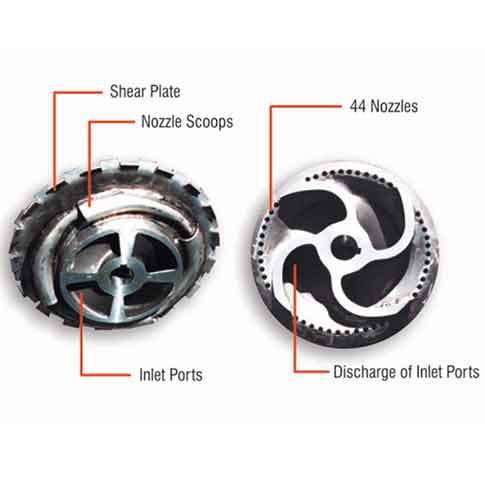

Structure and working principle

Packaging & Shipment

Packaging type: Pallet with plastic film

Exporting port: Tianjin, Shanghai



FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
