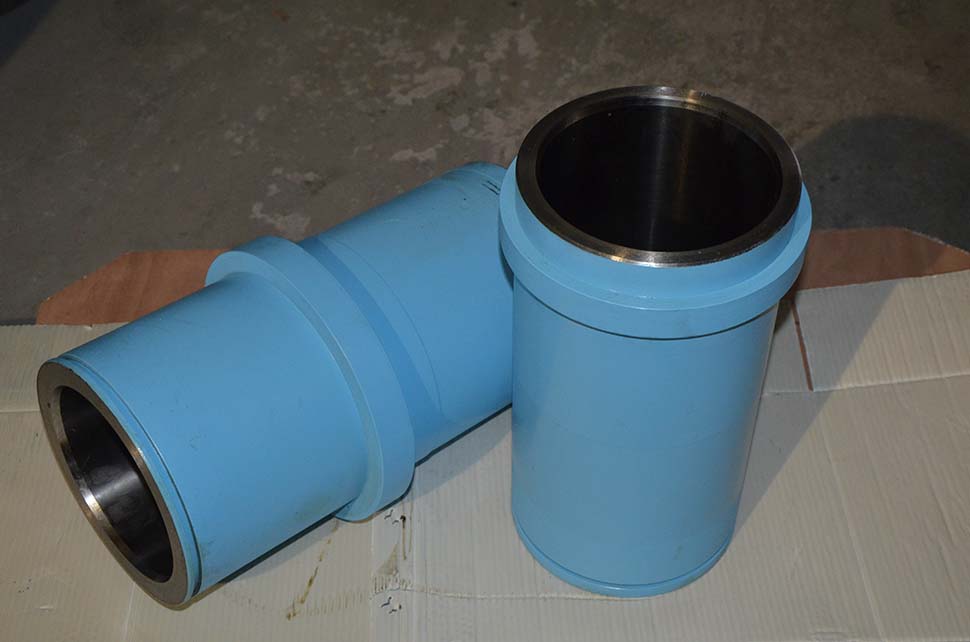

F1600 Mud Pump Liner

F1600 Mud Pump Liner

Tianjin Geostar had supplied a great number of F1600 mud pump liner for petroleum drilling industry. Our bi-metal or ceramic liners are engineered with utmost precision and durability, this top-tier liner is designed to optimize the performance of your mud pump, delivering unprecedented reliability and efficiency in demanding drilling operations. Our mud pump liner could be fully interchangeable with BOMCO/ESMCO/National/LEWCO brand.


  • Brand :

    OEM
  • Place of Origin :

    Tianjin, China
  • Type :

    Expendbles
  • Certification :

    API 7K
  • Supply Ability :

    2000 pcs per month
  • Application :

    Mud Pump Fluid End
  • Material :

    Bi-metal or ceramic
  • Model :

    4"~ 7"

Description

F1600 Mud pump liner (double metal liner) consists of forged steel shell and wear resistant sleeve of high chromium steel. The technology and manufacturing technique are introduced from BOMCO, and our liners could be fit and match with RG/BOMCO and other reputed brand mud pump.



Ceramic Liner consists of ceramic inner sleeve and a forged steel outer shell. Ceramic liners are corrosion resistant and have a smoother surface finish for reduced friction and heat. Ceramic liners could be categorized into Pure Zirconia liner and ZTA liner types.





Specifications

Descriptions

Bi-metal liner

ZTA Ceramics liner

Pure Zirconia liner

Outer shell material

Forged steel, AISI 105050#

Forged steel, AISI 105050#

Forged steel, AISI 105050#

Inner sleeve material

High chromium cast iron, Cr 26~28%

Zirconia toughened alumina

Zirconia 95%

Inner sleeve hardness

59-67 HRC

92-94 HRC

92-94 HRC

Typical service hours

800~1000

6000

8000

Features

Economical cost, suitable for all harsh environments.

High hardness, high wear resistance and corrosion resistance, long service life, suitable for offshore drilling operation.



Note: Above typical service hours are tested by normal temperature clear water, and actual service hours will vary depending on liner stroke, mud specific weight, solids contents, and skills of pump operators etc.



Packaging & Shipment

Packaging type: Steel frame

Exporting port: Tianjin, Shanghai



FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.



2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
