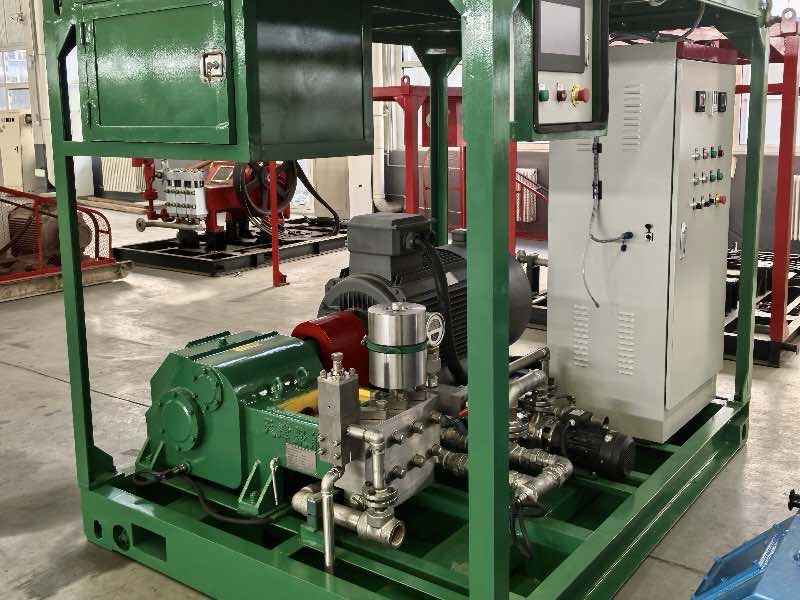

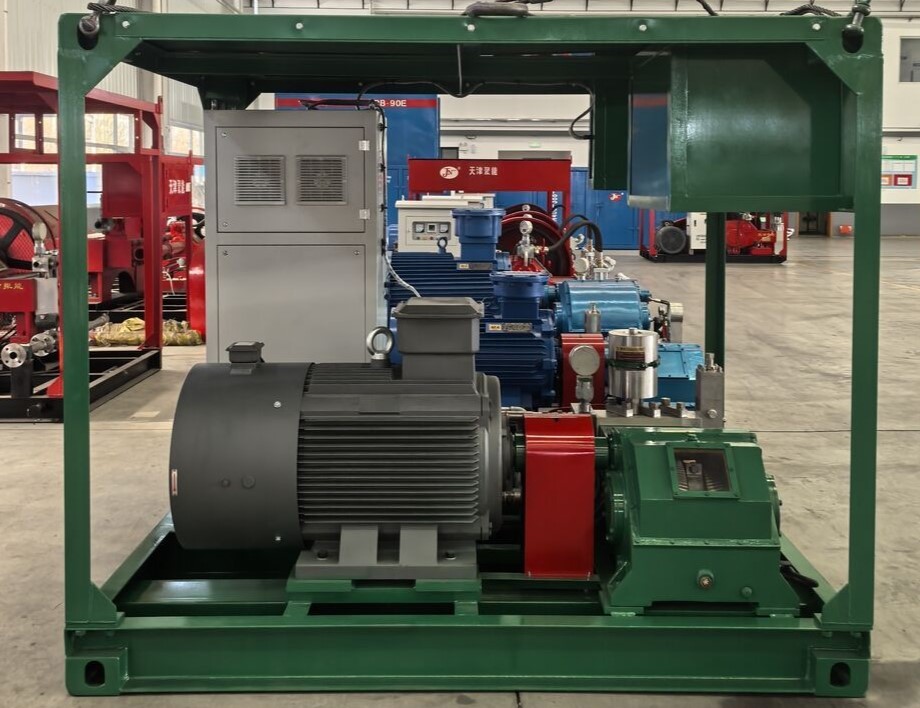

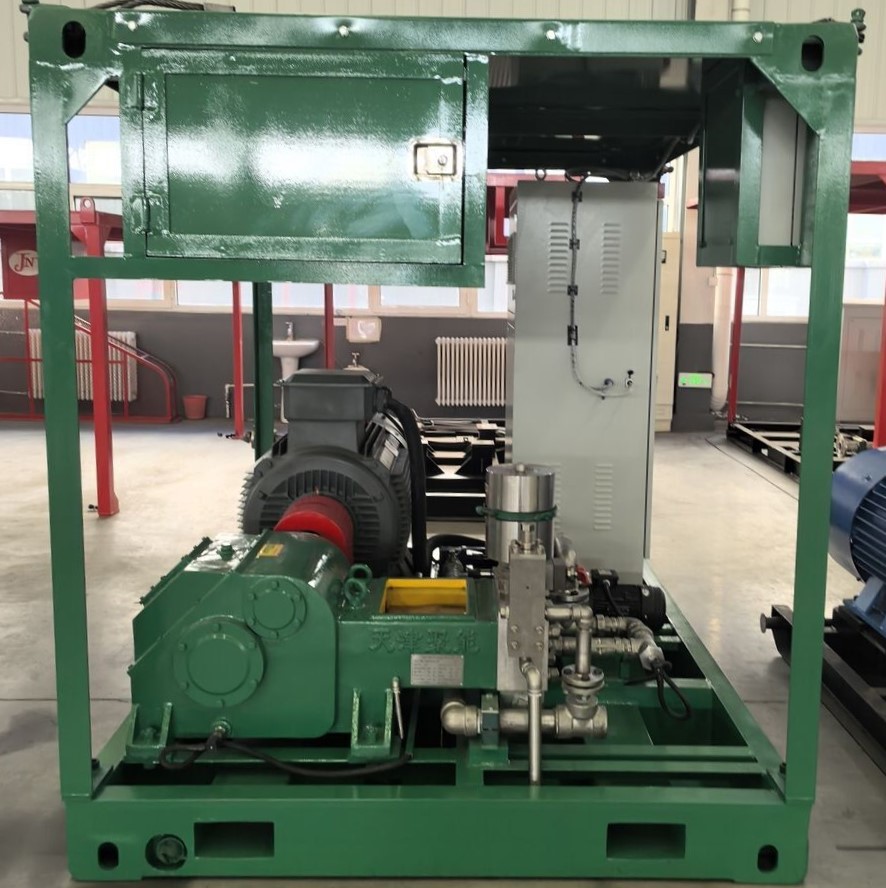

High-Pressure Plunger Pump 3S2

The high-pressure plunger pump 3S2 is a reciprocating pump with the ability to transport a variety of liquids. It features a compact structure, small size, light weight and high efficiency. It is suitable for departments that require high-pressure liquid equipment and is widely used in numerous industries such as petroleum, chemical, food, shipbuilding, construction and so on. It is designed with an efficient working mechanism, aiming to achieve the best performance and ensure maximum output with the minimum energy consumption.

Brand :
GST
Place of Origin :
Henan, China
Type :
Triplex plunger pump
Installation type :
Master skid
Power Range :
110KW
Power Source :
Electric motor
Certification :
Directive 2006/42/EC
Supply Ability :
50 sets per year

Inquire Now

Product categories

New products

Product Details

Description

The high-pressure plunger pump 3S2 has excellent liquid delivery capabilities and can be widely used in a variety of industries. Whether it's aqueous liquids such as water and emulsions, or viscous liquids like mud and cement slurry, they can all be efficiently transported to meet the different requirements of fields such as petroleum, chemical engineering, construction, and mining.

The pump head is equipped with an overflow valve, a throttle valve, and a pressure gauge, forming a reliable safety and control system. The overflow valve can automatically open to relieve pressure when the pressure approaches or reaches the rated value, preventing the pump body and pipelines from being damaged due to overpressure. The throttle valve can precisely adjust the working pressure, and operators can control the flow rate and velocity of the liquid according to the actual needs through simple operations. The pressure gauge displays the pressure situation in real time, facilitating operators to detect abnormalities promptly and make adjustments to ensure the smooth operation of the pump.

This system adopts an independent design, which is simple and quick to install and easy to integrate with other equipment. Meanwhile, its daily operation and maintenance are also very straightforward, allowing even non-professionals to easily handle it. It effectively improves work efficiency and quality and provides a strong guarantee for the production and operation of various industries.

Features

Multiple liquid delivery capabilities.
Pressure regulation and safety assurance.

Main Parameters of Triplex Pump Unit

MODEL	TPP150/400	PUMP MODEL	3S2
SERIAL NO	2004312336	WEIGHT	2840KGS
RATED FLOW	150L/min	RATED PRESSURE	400bar
RATED SPEED	409 min-1	PLUNGER	Ø40X100 mm
MOTOR MODEL	YVF3-315S-4-B3	SERIAL NO	S/JN240500100
RATED POWER	110DW	VOLTAGE	380V
DIMENTION	240(L)X180(W)x200(H)m

Parameters for VF Motor

P	110KW	AMP	197A
TROQUE	700.3 N.M	VOLTAGE	380V
FREQUENCY	50Hz	CONSTANT TORQUE FREQUENCY	3-50Hz
ROTATIONAL SPEED	1480r/min	CONSTANT POWER FREQUENCY	50-100Hz
CONN	△	ENCL	IP55
INS. CLASS	155(F)	DUTY	S1
WEIGHT	806KG

Packaging & Shipment

Packaging type: Seaworthy packing

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
