KEY FEATURE
1. Adaptability for Drilling Rigs:

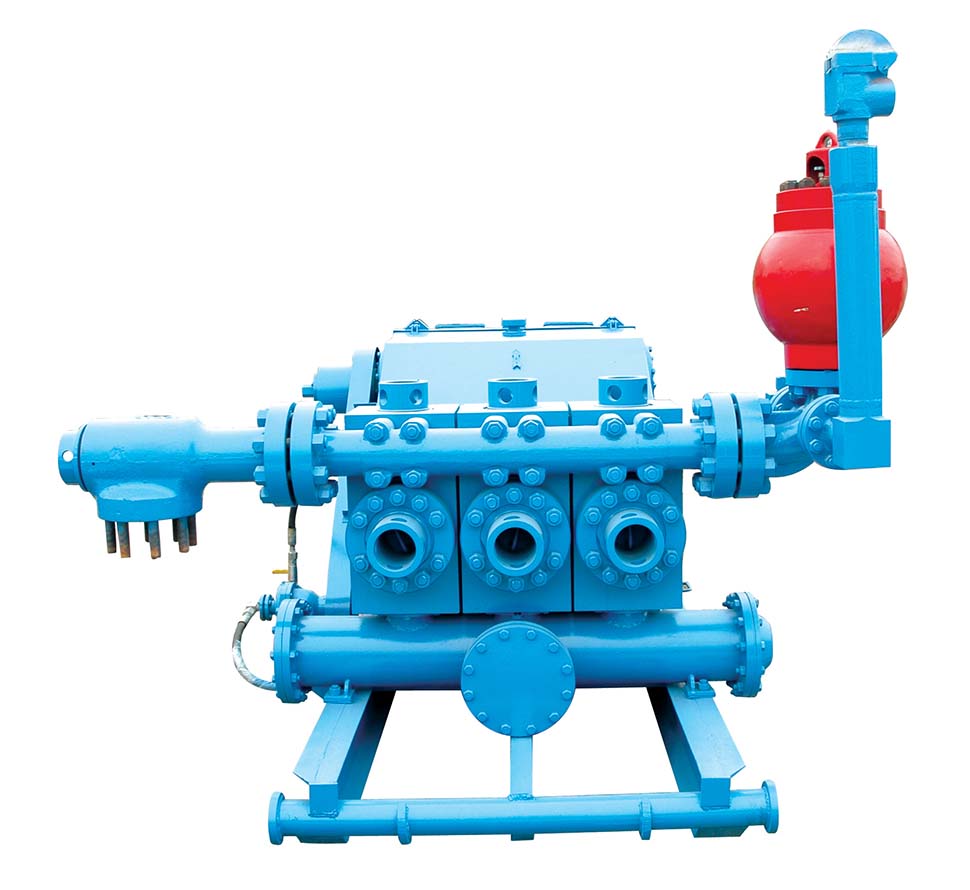

F800 mud pump is generally suitable for small drilling rig or workover rig, like 1500~2000 meters drilling rig or 550hp workover rig. It is ideal pump for shallow oilwell drilling or workover.
2. Power end
- Eccentric type balanced crankshaft: Casted, heat treated steel for less vibration, noise and longer bearing life.
- All high Strength Steel Fabricated and Stress Relieved Power End.
- Anti Friction roller bearings throughout.
3. Fluid end
- API Standard Valves, Seats, Liners, Piston Rods, and Pistons.
- Quick Change Buttress Threaded Valve and Fluid End Covers. Same as F1000 mud pump, API 6# valve is taken.
- Metal to Metal Liner Lock System.
4. Lubrication and other system
- Triple Redundant (Failure Proof) Power End Lube System: Internal Splash / Gravity Feed, Internal Gear Driven Pump, and External Gear Pump, Electric Motor Driven.
- Required central lubrication manifold system with copper tubing for feeding main, eccentric, and pinion bearings. Pressurized lubrication is also required to the lower crosshead slide for longer crosshead life.
- Required High Capacity Recirculating Liner Wash System, consisting of: Electric Motor Driven Liner Wash Pump, and Baffled Recirculation Collection Tank System.
Specifications
|
Model
|
F-800
|
|
Rated power, kW(hp)
|
596(800)
|
|
Max. liner bore, mm (in)
|
170 (6-3/4)
|
|
Stroke, mm(in)
|
229 (9)
|
|
Rated speed, spm
|
150
|
|
Gear ratio
|
4.185
|
|
Suction flange size, in
|
10
|
|
Discharge flange size, in
|
5
|
|
Valve pot
|
API 6#
|
|
Weight, kg
|
14,500
|
Performance chart for F800 mud pump
|
SPM
|
Liner diameter（mm）
|
Φ170
|
Φ160
|
Φ150
|
Φ140
|
Φ130
|
|
Rated pressure（MPa）
|
13.5
|
15.3
|
17.4
|
20.0
|
23.2
|
|
Rated power
|
|
|
kW
|
HP
|
Displacement （ L/S）
|
|
160
|
629
|
853
|
41.51
|
36.78
|
32.32
|
28.16
|
24.28
|
|
※150
|
※590
|
※800
|
38.92
|
34.48
|
30.30
|
26.40
|
22.76
|
|
140
|
551
|
747
|
36.33
|
32.18
|
28.28
|
24.64
|
21.24
|
|
130
|
511
|
693
|
33.73
|
29.88
|
26.26
|
22.88
|
19.73
|
|
120
|
472
|
640
|
31.14
|
27.58
|
24.24
|
21.12
|
18.21
|
|
100
|
433
|
587
|
28.54
|
25.28
|
22.22
|
19.36
|
16.69
|
|
1
|
|
|
0.259
|
0.23
|
0.202
|
0.176
|
0.152
|
Packaging & Shipment
Packaging type: Seaworthy packing
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
