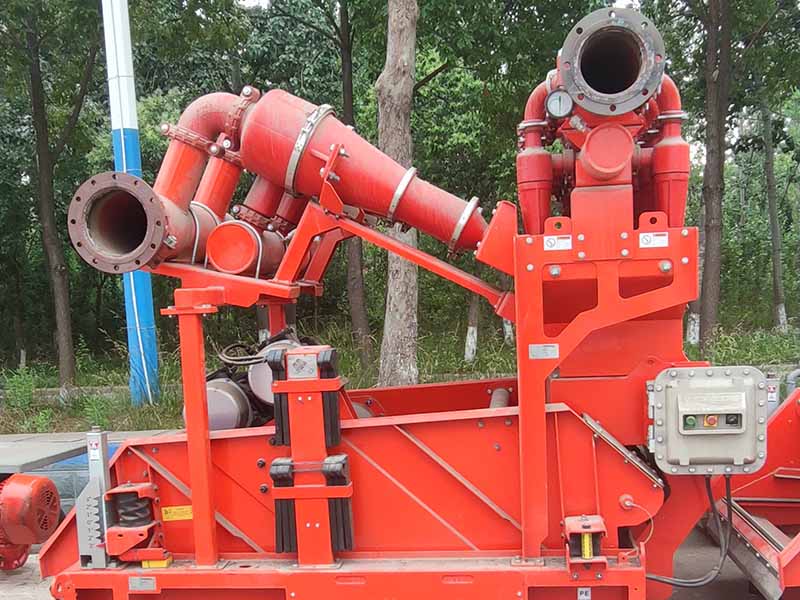

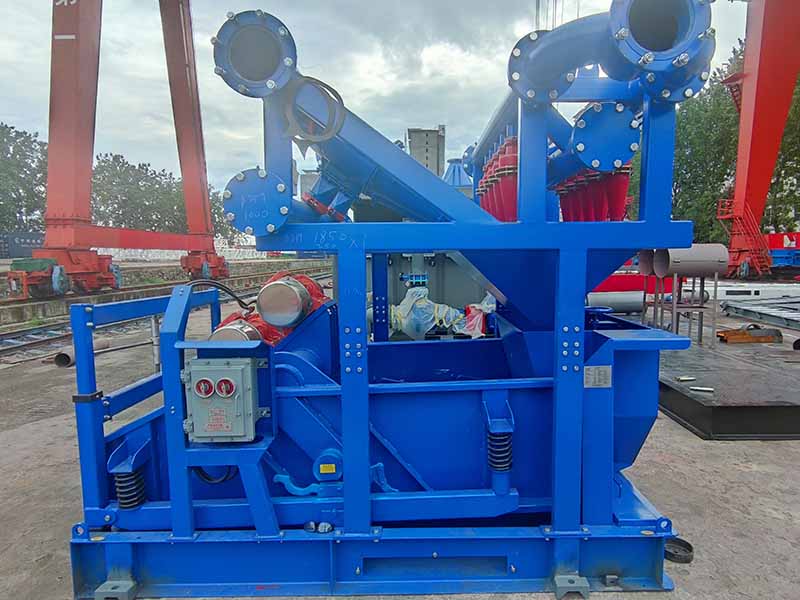

Mud cleaners are second and third stage solids control equipment. Mud cleaners are combined desanding hydrocyclone, desilting hydrocyclone and bottom shale shaker into one. Mud cleaners have advantage of compact size and small footprint.
Brand :
GSTPlace of Origin :
Henan, ChinaType :
Desander and desilter combinationCertification :
SY/TSupply Ability :
40 sets per monthMaterial :
Steel and plasticModel :
As per specificationApplication :
Solids ControlFeatures
|
Model |
QJ583-1S8N |
QJ583-2S12N |
QJ583-3S16N |
QJ584-2S12N |
QJ584-3S16N |
|
|
Flowrate, m³/h (gpm) |
120(528) |
240(1056) |
360(1585) |
280(1233) |
390(1717) |
|
|
Desanding hydrocyclone size |
10” |
|||||
|
Desanding hydrocyclone quantity |
1 |
2 |
3 |
2 |
3 |
|
|
Desilting hydrocyclone size |
4” |
|||||
|
Desilting hydrocyclone quantity |
8 |
12 |
16 |
12 |
16 |
|
|
Working pressure |
|
0.25-0.4MPa (36-58 psi) |
||||
|
Separation range |
|
15-75 μm |
||||
|
Matched shaker model |
ZS583 |
ZS584 |
||||
|
Explosion proof rating |
|
ExdIIBt4/IECEX/ATEX |
||||
|
Outline dimension, mm |
2410x1978x2147 |
2410x1978x2147 |
2410x1978x2147 |
3004x1978x2147 |
3004x1978x2147 |
|
Packaging & Shipment
Packaging type: Export Seaworthy
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
