The Safety Guard in Oil Drilling——Top Drive IBOP

The Safety Guard in Oil Drilling——Top Drive IBOP

Dec 11, 2024

In oil drilling operations, every link is of great importance. In particular, ensuring the safety of the operating personnel is crucial. To ensure the smooth progress of each drilling operation, reliable equipment and technologies must be relied upon. Among them, the top drive IBOP (Internal Blowout Preventer) serves as an important safety device and plays a key role in protecting the personnel and equipment involved in drilling operations.



I.Product Introduction

 The top drive IBOP is a kind of safety valve. It is usually ingeniously integrated inside the top drive system. It is relatively compact in size but contains tremendous energy. It mainly consists of parts such as the valve body, valve core, sealing components, and related control mechanisms. The valve body is made of high-strength alloy steel, possessing excellent compressive performance and being able to withstand the tests of extreme high-pressure environments underground. The valve core is a key element for controlling the opening and closing of the fluid passage. Its design and manufacturing precision are extremely high to ensure smoothness and reliability when opening and closing. The sealing components should not be underestimated either. They adopt special oil-resistant, temperature-resistant, and high-pressure-resistant rubber materials or advanced metal sealing technologies to effectively prevent the leakage of fluids in the well.

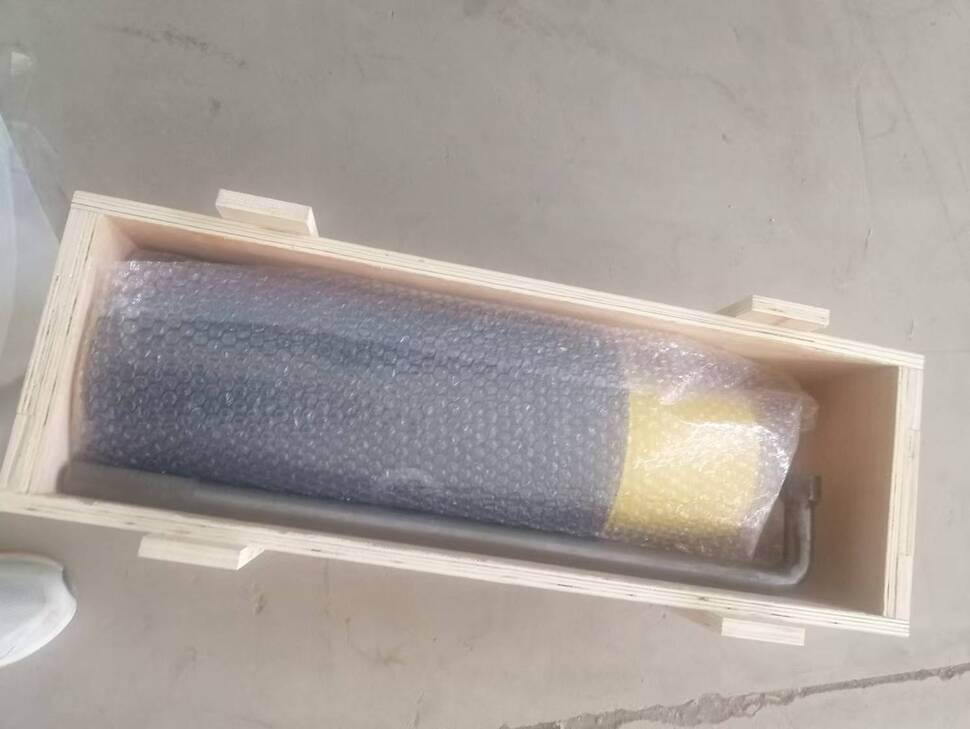

the top drive IBOP



II. Function Explanation

Blowout Prevention Function
This is the most critical function of the top drive IBOP. During the drilling process, once the formation pressure underground abnormally increases, resulting in dangerous situations such as well kick or even blowout, the top drive IBOP will quickly start the closing procedure. It can cut off the passage of the fluids in the well within an extremely short period of time (usually just a few seconds). Whether it is drilling fluid, crude oil, or natural gas, none of them can break through its defense and spurt towards the wellhead. It is just like building a solid dam at the wellhead, firmly controlling the danger underground. For example, during the drilling of deep-sea high-pressure oil wells, when drilling into high-pressure formations, the huge pressure difference may instantaneously trigger a blowout. However, relying on its sensitive monitoring system and rapid closing action, the top drive IBOP has successfully prevented blowout accidents, protecting the lives of drilling personnel and keeping the surrounding marine environment from being polluted.

Pressure Control Auxiliary Function
After the IBOP is closed, it buys precious time for the drilling team to adjust the downhole pressure. By cooperating with other well control equipment, the pressure in the wellbore can be precisely controlled. For example, injecting weighted drilling fluid into the wellbore to increase the hydrostatic pressure in the wellbore and make it rebalance with the formation pressure. In this process, the top drive IBOP is like a stable pressure control node, ensuring that the entire pressure adjustment process proceeds safely and orderly.



III. Wide Range of Applications

Conventional Drilling Operations
In the daily drilling process, although the top drive IBOP is mostly in an open state, it is always silently guarding in the background. It allows the normal circulation of drilling fluid, ensuring the cooling of the drill bit and the smooth return of cuttings to the surface. Once any sign of abnormal pressure appears, it can immediately step in and nip the potential danger in the bud. Whether it is deep well drilling on land or offshore oil exploration, the top drive IBOP is an indispensable existence.

Drilling in Complex Geological Conditions
When facing complex geological structures, such as the existence of multiple pressure systems, large variations in formation permeability, and easy intrusion of formation fluids, the role of the top drive IBOP becomes even more prominent. In special drilling techniques such as directional wells and horizontal wells, due to the complexity of the wellbore trajectory, the difficulty of well control increases significantly. The top drive IBOP can flexibly perform opening and closing operations according to the real-time pressure changes underground and the adjustments of the drilling direction, ensuring the well control safety during the drilling process. For example, when drilling through formations where high-pressure oil layers and water layers are interlaced, it can precisely control the flow of fluids, preventing the mutual interference of fluids in different pressure systems and ensuring the smooth progress of the drilling operation.



IV. Application Cases

Case 1: Crisis Resolution in Land Deep Well Drilling

In a certain land deep well drilling project, the target depth exceeded 5,000 meters. When drilling to around 4,000 meters, the geological conditions suddenly changed, and the formation pressure rose sharply. The drilling fluid began to show abnormal reverse flow phenomena, which was a strong signal that a well kick was about to occur. The pressure monitoring system of the top drive IBOP quickly captured this change and immediately triggered the closing instruction. In just 3 seconds, the valve core of the IBOP was tightly closed, successfully cutting off the fluid passage in the well. Subsequently, the well control team accurately calculated and prepared the weighted drilling fluid based on the stable state after the IBOP was closed. Through cooperation with the choke manifold, they gradually injected it into the wellbore. After several hours of intense operations, the downhole pressure was finally rebalanced. Then, the IBOP was safely opened, and the drilling operation was resumed. The drilling task of this deep well was successfully completed.

Case 2: Well Control Guarantee in Offshore Directional Wells

During an offshore directional well drilling operation, due to the complex formations in this area, there were multiple high-pressure oil layers and water layers, and the wellbore trajectory was inclined at a certain angle, making the well control extremely difficult. During the drilling process, when the drill bit passed through the interface of formations with different pressure systems, the downhole pressure fluctuated frequently. The top drive IBOP, relying on its high-precision pressure sensors and intelligent control system, monitored the pressure changes in real time and flexibly opened and closed multiple times according to the preset procedures. When the oil in the high-pressure oil layer showed a tendency to invade the wellbore, the IBOP closed in time to prevent oil blowout. When the pressure was balanced, it opened again to ensure the circulation of the drilling fluid. Through such precise control, the mutual interference of fluids in different pressure systems was effectively avoided, ensuring the safety and smooth progress of the entire directional well drilling process.

As an important piece of equipment in the field of oil drilling, the importance of the top drive IBOP is obvious. With its reliable performance, powerful functions, and wide range of applications, it escorts the safety and efficiency of oil drilling operations. Every oil drilling practitioner knows well that with the protection of the top drive IBOP, they can explore the underground treasures more at ease, continuously overcome one drilling difficulty after another, and contribute to the global energy development cause.
