Drilling Mud Decanter Centrifuge

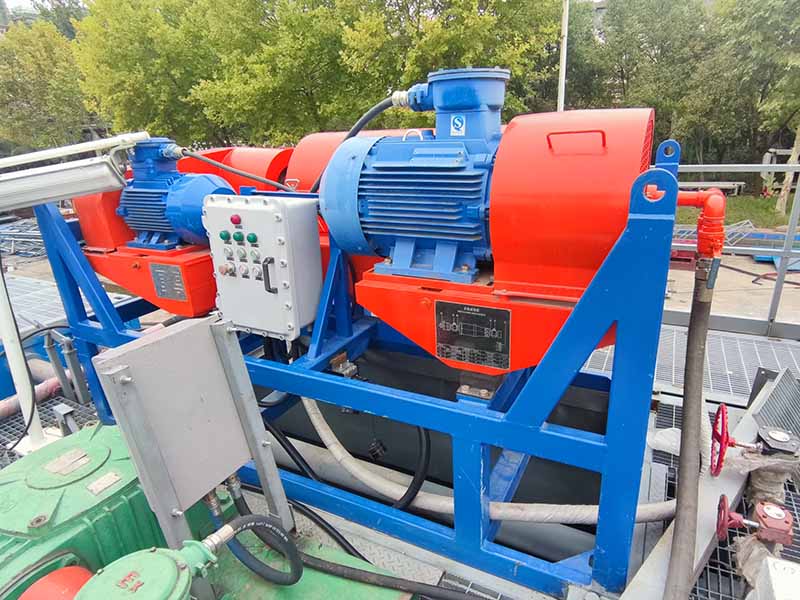

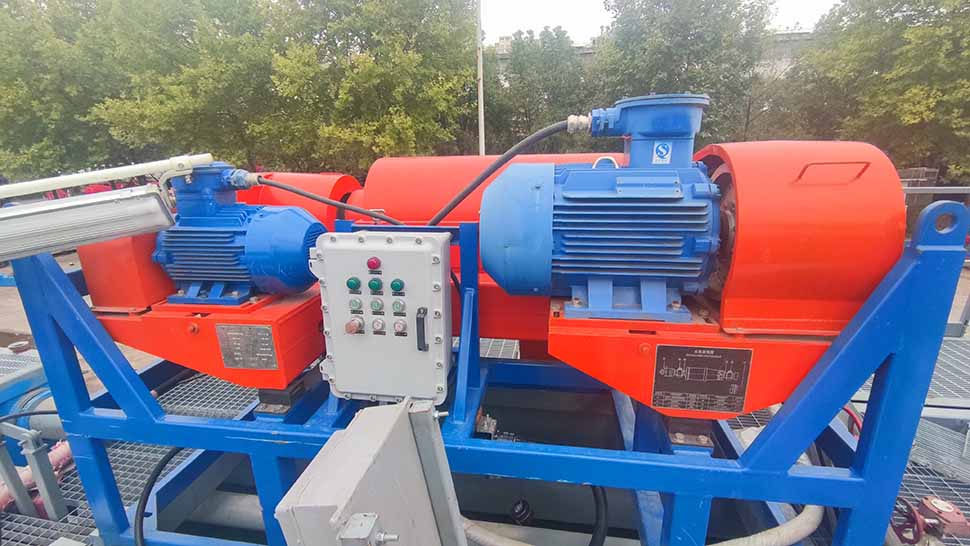

Drilling Mud Decanter Centrifuge

Drilling Mud Decanter centrifuges are fourth stage solids control equipment for processing drilling fluid. It uses the principle of centrifugal sedimentation to separate the suspension. According to rotation speed, it can be classified into medium speed, high speed and variable frequency high speed centrifuge. It is used to separate solids particles of 2-7 μm from drilling fluid and is important equipment to balance drilling fluid viscosity and restore mud density.

  • Brand :

    GST
  • Place of Origin :

    Henan, China
  • Type :

    Centrifugal
  • Certification :

    SY/T
  • Supply Ability :

    30 sets per month
  • Material :

    Stainless Steel
  • Model :

    As per specification
  • Application :

    Solids Control

Features

  • Bowl is casted with premium stainless steel, and long service life.
  • Bowl slurry outlet adopts premium alloy sleeve or ceramics inserts, more wear resistant.
  • Screw propeller slurry discharge surface welded tungsten carbide or inserted hard alloy.
  • Shock absorption adopts high strength composite material.
  • Optional VFD control, convenient to regulate speed, applicable for various working conditions.

Specifications



Model

LW250-930

LW355-1250

LW450-1000

LW550-2200

LW650-2800

Drum dia, mm

250

350

450

550

650

Drum length, mm

930

1250

1000

2200

2800

Flowrate, m³/h

5

40

60

80

100

Max. speed, rpm

4500

3200

2200

3000

2800

G force

2835

2435

1215

2436

2273

Separation range, μm

2-5

2-5

5-7

2-5

2-5

Main motor, kW

11

37

37

55

75

Aux. motor, kW

4

11

7.5

15

30

Explosion proof rating

ExdIIBt4/IECEX/ATEX

Weight, kg

1500

2750

2800

6400

8500



Packaging & Shipment

Packaging type: Export Seaworthy

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.



2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
