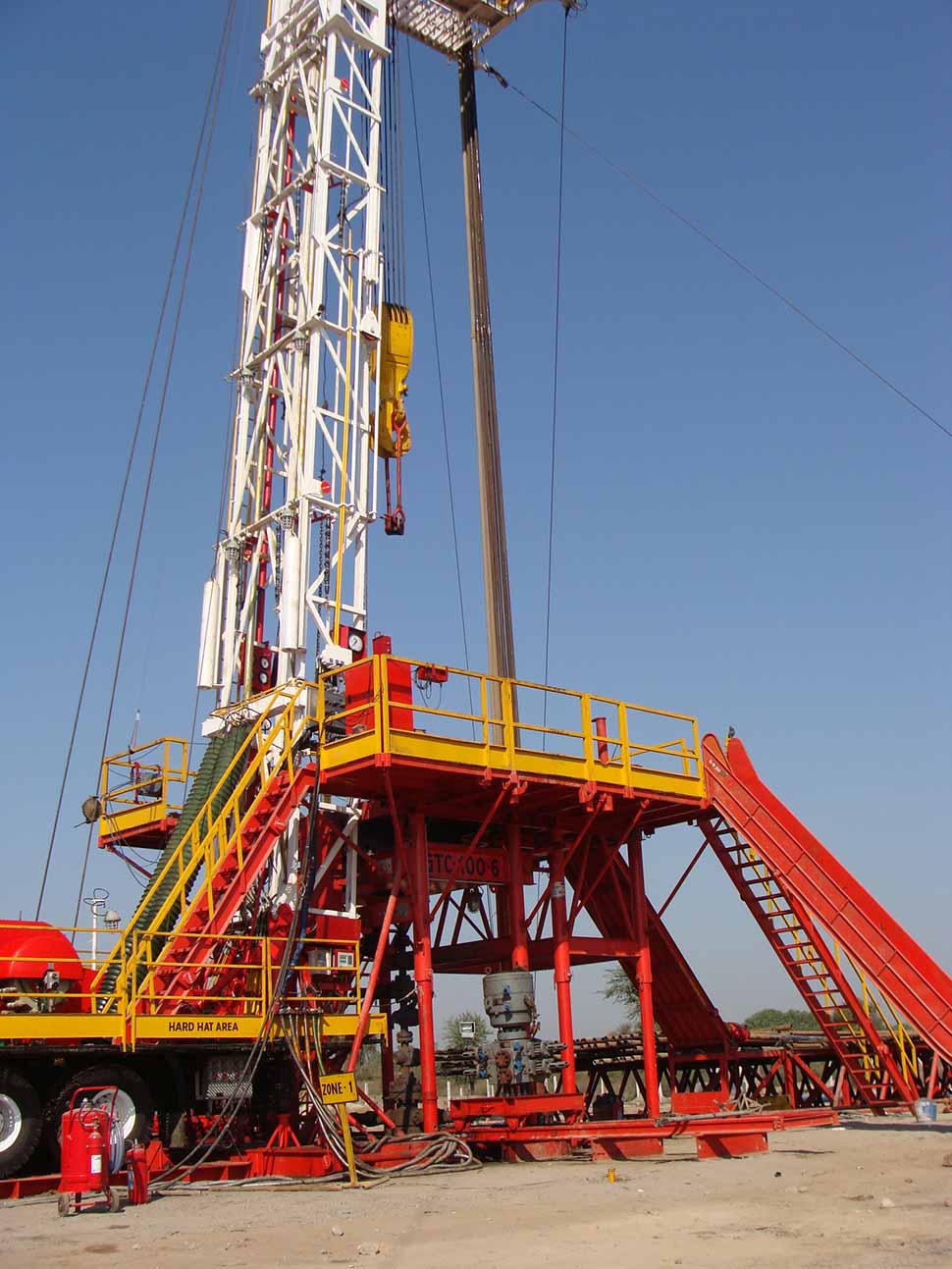

Petroleum Workover Rig or Well Servicing Rig

Petroleum Workover Rig or Well Servicing Rig

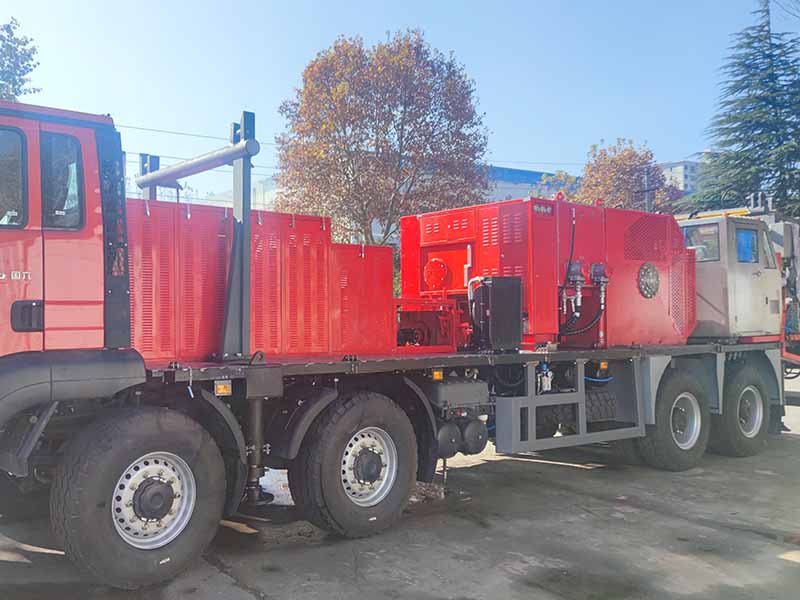

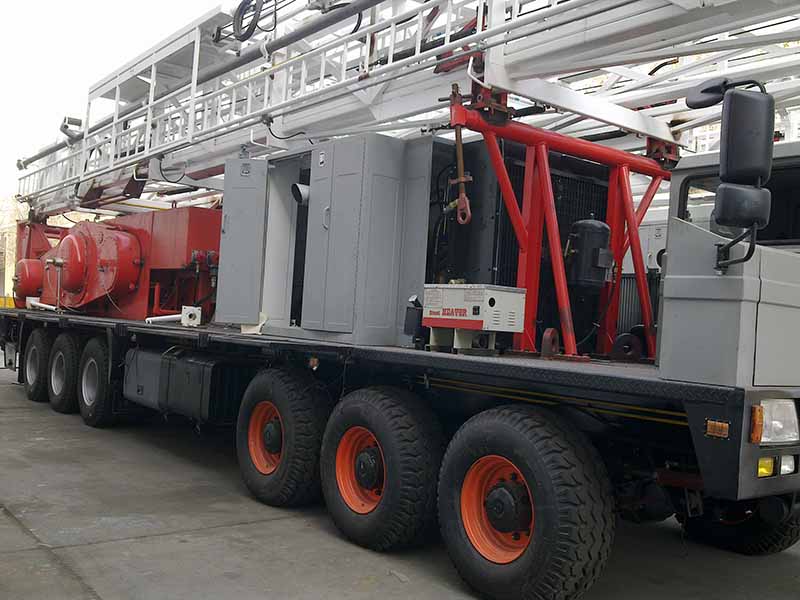

The petroleum workover rig or well servicing rig is mechanically and hydraulically driven. The power system, drawworks, mast, travelling system and transmission mechanism of the workover rig are mounted on the self-propelled chassis, which improved the operation efficiency dramatically. Hook load of our workover rig covers from 40 metric ton to 225 metric ton, drawworks power from 250 to 1000 HP, featuring large operation load, reliable performance, excellent off-road performance, convenient movement etc.

  • Brand :

    OEM
  • Place of Origin :

    Henan, China
  • Type :

    Mobile
  • Certification :

    API 4F/7K
  • Supply Ability :

    5 sets per month
  • Material :

    Steel
  • Model :

    As per specification
  • Application :

    Workover or Well servicing

Features

  • Design and fabrication compliant with API Spec. Q1, 4F, 7K, 8C and API monogrammed.
  • Modular design achieves fast move and transportation.
  • Mechanical transmission, simple operation and easy maintenance.
  • Special oilfield off-road chassis extends service life.



Specifications



Model

XJ700

XJ900

XJ1100

XJ1350

XJ1600

XJ1800

XJ2250

Max. hook load, kN(lb)

700 (160,000)

900 (200,000)

1100 (250,000)

1350 (300,000)

1600 (360,000)

1800 (400,000)

2250 (500,000)

Rated hook load, kN(lb)

400 (900,000)

600 (130,000)

800 (180,000)

1000 (225,000)

1200 (270,000)

1500 (337,000)

1800 (400,000)

Service depth with 73mm (2 3/8) TBG, m(ft)

3200 (10500)

4000 (13100)

5500 (18000)

7000 (23000)

8500 (27900)

-

-

Workover depth with 73mm(2 3/8) DP, m(ft)

2000  (6560)

3200  (10500)

4500  (14800)

5800  (19000)

7000  (23000)

8000  (26200)

9000  (29500)

Diesel engine power, kW(hp)

224(300)

280(375)

403(540)

403(540)

470(630)

2x403(2x540)

2x470(2x630)

Drawworks rated power, kW(hp)

185(250)

260(350)

335(450)

410(550)

485(650)

560(750)

746(1000)

Main brake type

Band brake

Band or disc brake

Band or disc brake

Band or disc brake

Band or disc brake

Band brake or disc brake

Band brake or disc brake

Lines of travelling system

6

6

8

8

8

10

10

Drilling line dia., mm(in)

227/8

261

261

291 1/8

291 1/8

321 1/4

321 1/4

Mast height, m(ft)

2272

32105

33108

33108

35115

38125

38125

Chassis

6x6

8x8 or 10x8

10x8

10x8

12x8

14x8

14x10

Min. ground clearance, mm

311

340

311

311

311

311

311

Max. climbing gradient

26%

30%

26%

26%

26%

26%

26%

Approach/departure angle

18°/12°

23°/16°

26°/17°

26°/18°

26°/18°

26°/18°

26°/18°



Packaging & Shipment

Packaging type: Export Seaworthy

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.



2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
