Truck or Trailer Mounted Drilling Rig

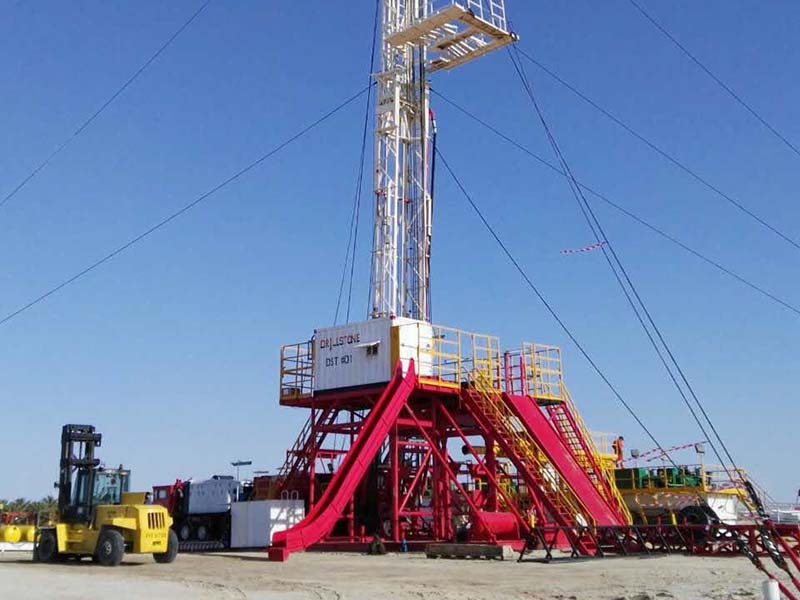

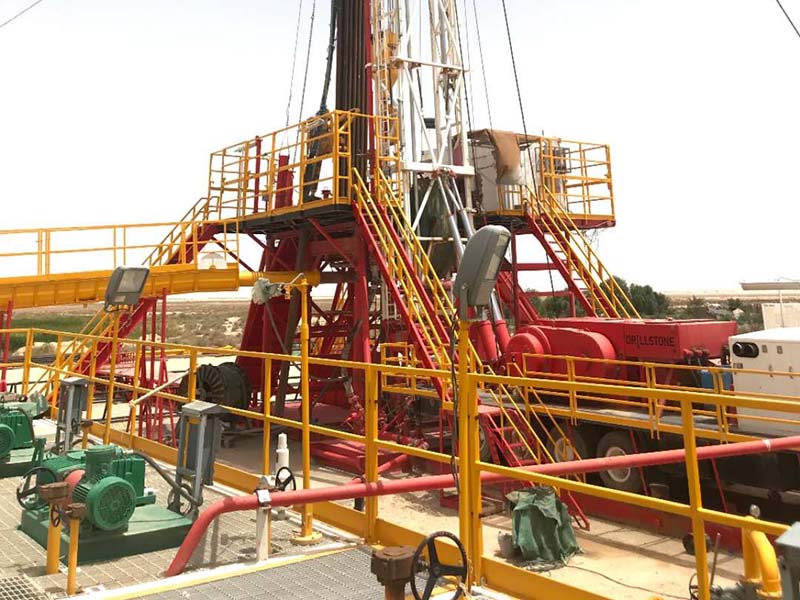

The truck or trailer mounted drilling rig is new type of rig capable of fast moving, quite suitable for drilling shallow and medium depth well. The power system, drawworks, mast, travelling system and transmission mechanism of the drilling rig are mounted on the self-propelled chassis, which improved the operation efficiency dramatically. Drilling depth of our truck/trailer mounted drilling rig covers from 1000m to 4000m, max. static load from 900 to 2250 kN, featuring large operation load, reliable performance, excellent off-road performance, convenient movement etc.

  • Brand :

    OEM

  • Place of Origin :

    Henan, China

  • Type :

    Mobile

  • Certification :

    API 4F/7K

  • Supply Ability :

    5 sets per month

  • Material :

    Steel

  • Model :

    As per specification

  • Application :

    Petroleum drilling

Inquire Now

Features

  • Design and fabrication compliant with API Spec. Q1, 7K, 8C and API monogrammed.
  • Modular design achieves fast move and transportation.
  • Mechanical transmission, simple operation and easy maintenance.
  • Special oilfield off-road chassis extends service life.



Specifications



Model

ZJ10Z(T)

ZJ15Z(T)

ZJ20Z(T)

ZJ30CZ(T)

ZJ40Z(T)



Max. hook load, kN(lb)

900 (200,000)

1350 (300,000)

1600 (360,000)

1800 (400,000)

2250 (500,000)



Nominal drilling depth 114mm(4 1/2)DP, m(ft)

1000        (3280)

1500         (4920)

2000        (6560)

3000          (9840)

4000          (13100)



Diesel engine power, kW(hp)

280(375)

403(540)

470(630)

2x403(2x540)

2x470(2x630)



Drawworks rated power, kW(hp)

260(350)

410(550)

485(650)

560(750)

746(1000)



Main brake type

Band/disc brake

Band/disc brake

Band/disc brake

Band/disc brake

Band/disc brake



Lines of travelling system

6

8

8

10

10



Drilling line dia., mm(in)

26（1）

29（1 1/8）

29（1 1/8）

32（1 1/4）

32（1 1/4）



Mast height, m(ft)

32（105）

33（108）

35（115）

38（125）

38（125）



Substructure height, m(ft)

3(10)

4.5(15)

4.5(15)

6(20)

6.7(22)



Substructure clearance , m(ft)

2(6.5)

3.5(11.5)

3.5(11.5)

4.9(16)

5.5(18)



Rotary table opening, mm(in)

444.5 (17 1/2)

444.5 (17 1/2)

520.7 (20 1/2）

698.5 (27 1/2)

698.5 (27 1/2)



Drilling pump qty.

1

1

2

2

2



Drilling pump rated power, kW(hp)

373(500)

373(500)

597(800)

597(800)

746(1000)



Standpipe dia. mm(in)

64 (2 1/2)

64 (2 1/2)

76(3)

76(3)

76(3)



Standpipe working pressure, MPa(psi)

25(3600)

25(3600)

35(5000)

35(5000)

35(5000)



Self-propelled chassis

8x8 or 10x8

10x8

12x8

14x8

14x10



Trailer

-

3 axles

4 axles

5 axles

5 axles





Packaging & Shipment

Packaging type: Export Seaworthy

Exporting port: Tianjin, Shanghai



FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.



2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
