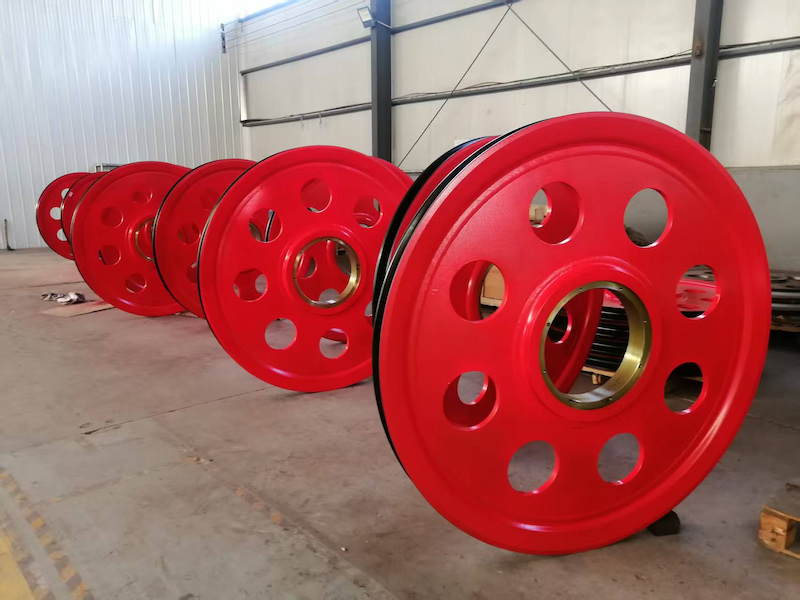

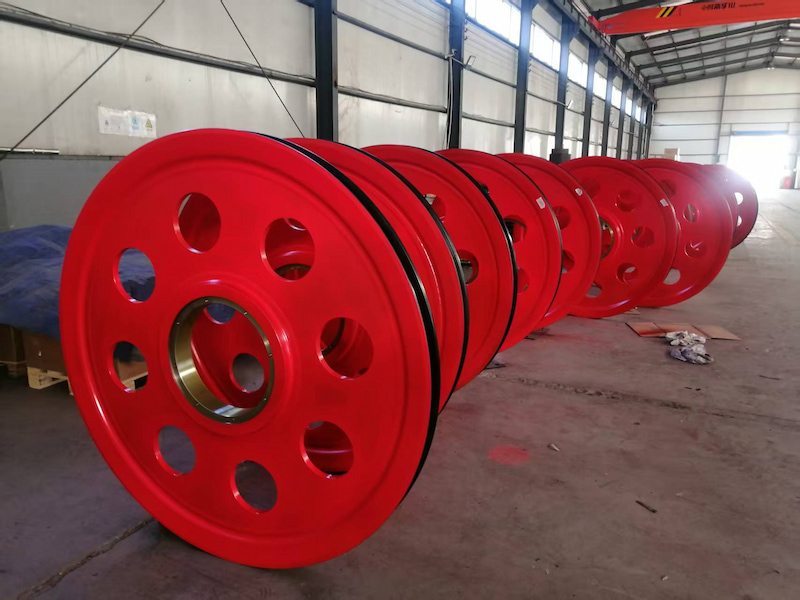

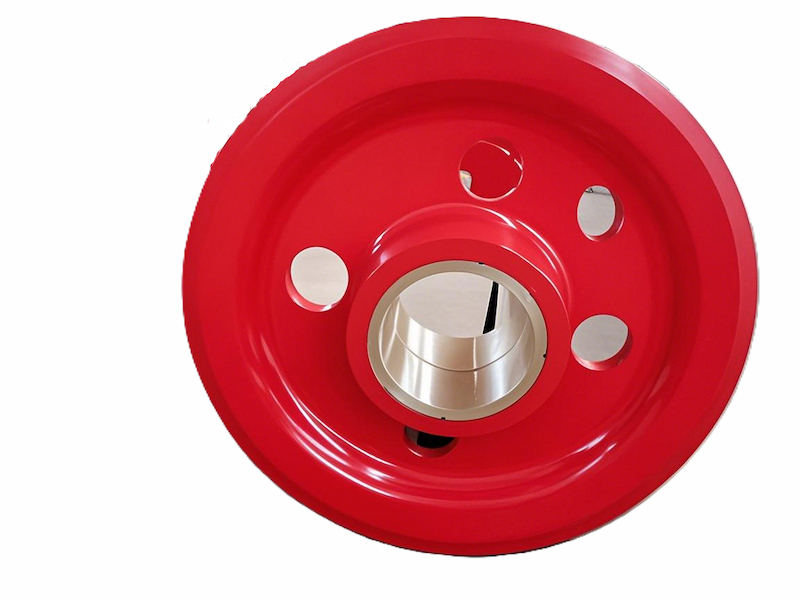

Sheave for crown block and hook block

The forged and welded sheaves for petroleum machinery strictly adhere to API Spec 8C. Made of top-grade steel, the sheave body is tough and wear-resistant, withstanding high-pressure operations. Fitted with high-precision bearings, it operates smoothly, minimizes wear, prolongs the service life, and guarantees the safety and reliability during the operation process.

We offer various sheave specs for different load capacities. Select the right one according to load weight, space limits and hoisting frequency.

Brand :
MENGTAI
Place of Origin :
Shaanxi,China
Type :
Consumable parts
Certification :
API Spec 8C
Supply Ability :
500 pcs per month
Application :
Hoisting System,Wellhead Operations,Auxiliary Operations
Material :
Steel 35
Model :
As per drawing

Inquire Now

Product categories

New products

Product Details

Description

The design, manufacturing, inspection, testing, etc. of the sheaves follow the API Spec 8C standard. They are made of high-quality steel and combined with forging and welding processes, endowing them with excellent compressive and wear-resistant properties. In harsh operating environments such as oil drilling, the sheaves can frequently bear huge loads and the intense friction between the wire rope and the sheave surface. They can maintain a stable working state during long-term high-intensity operations, reducing the frequency of maintenance and replacement and lowering the operating costs. sheave

The sheaves are usually equipped with high-precision bearings. These bearings have precise manufacturing tolerances and good rotational accuracy, ensuring that the sheaves can run smoothly under high-speed and heavy-load conditions. The high-precision bearings can also effectively reduce the friction resistance, decrease energy consumption, and improve the working efficiency of the sheaves.

The sheaves and bearings are interchangeable with those of the supporting crown blocks and traveling blocks.

Specifications

S/N	Spec	Appl. Wire Rope Dia. (Groove Radius) mm	Suit. Bear. Model	ID of sheave Bore （mm）	Weight (kg)
1	ф 1524	ф35(R18.7)	37941K	ф276.225	425
2	ф 1524	ф35(R18.7)	37951K	ф347.662	398
3	ф 1524	ф38(R20.4)	37961K	ф393.7	390
4	ф 1524	ф38(R20.4)	37951K	ф347.662	410
5	ф 1524	ф38(R20.4)	37971K	ф444.5	425
6	ф 1524	ф45(R24)	37971K	ф444.5	375
7	ф 1270	ф32(R16.9)	37941K	ф276.225	330
8	ф 1270	ф35(R18.7)	37951K	ф347.662	315
9	ф 1270	ф35(R18.7)	2097952K	ф360	298

10	ф 1120	ф32(R16.9)	2097938E	ф260	245
11	ф 1120	ф29(R15.5)	2097938E	ф260	245
12	ф 1120	ф32(R16.9)	37941K	ф276.225	230
13	ф 1120	ф32(R16.9)	2097952K	ф360	215
14	ф 915	ф26(R13.5)	*	ф210	190
15	ф 915	ф29(R15.5)	*	ф210	185
16	ф 915	ф32(R16.9)	*	ф260	185
17	ф 915	ф29(R15.5)	*	ф260	190
18	ф 915	ф29(R15.5)	*	ф250	195
19	ф 760	ф26(R13.5)	*	ф250	165

20	ф 760	ф29(R15.5)	*	ф250	160
21	ф 760	ф26(R13.5)	*	ф210	150
22	ф 760	ф29(R15.5)	*	ф210	150
23	ф 760	ф32(R16.9)	*	ф250	135
24	ф 760	ф22(R12)	*	ф210	140
25	ф 610	ф14.5(R7.5)	*	ф180	60
26	ф 610	ф26(R13.5)	*	ф210	60
27	ф 610	ф22(R12)	*	ф210	60
28	ф 610	ф22(R12)	*	ф180	62
29	ф 610	ф16(R8.5)	*	ф210	65

30	ф 500	ф16(R8.5)	*	ф125	48
31	ф 500	ф22(R12)	*	ф180	50
32	ф 500	ф16(R8.5)	*	ф180	48
33	ф 500	ф19(R10)	*	ф125	50
34	ф 500	ф14.5(R7.5)	*	ф125	50
35	ф 500	ф14.5(R7.5)	*	ф180	48
36	ф 400	ф19(R10)	*	ф125	36

Features

Labor-saving and efficient: Reduces pulling force for lifting/lowering heavy items, improving operation efficiency.
Changes force direction, facilitating wellhead operations and equipment arrangement.
Reduces wear of components like drilling ropes, extends equipment lifespan, and cuts maintenance costs.
Smooths operation and enhances safety.
Made of high-quality materials, adaptable to various complex and harsh drilling environments.

Packaging & Shipment

Packaging type: Export wooden box

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
