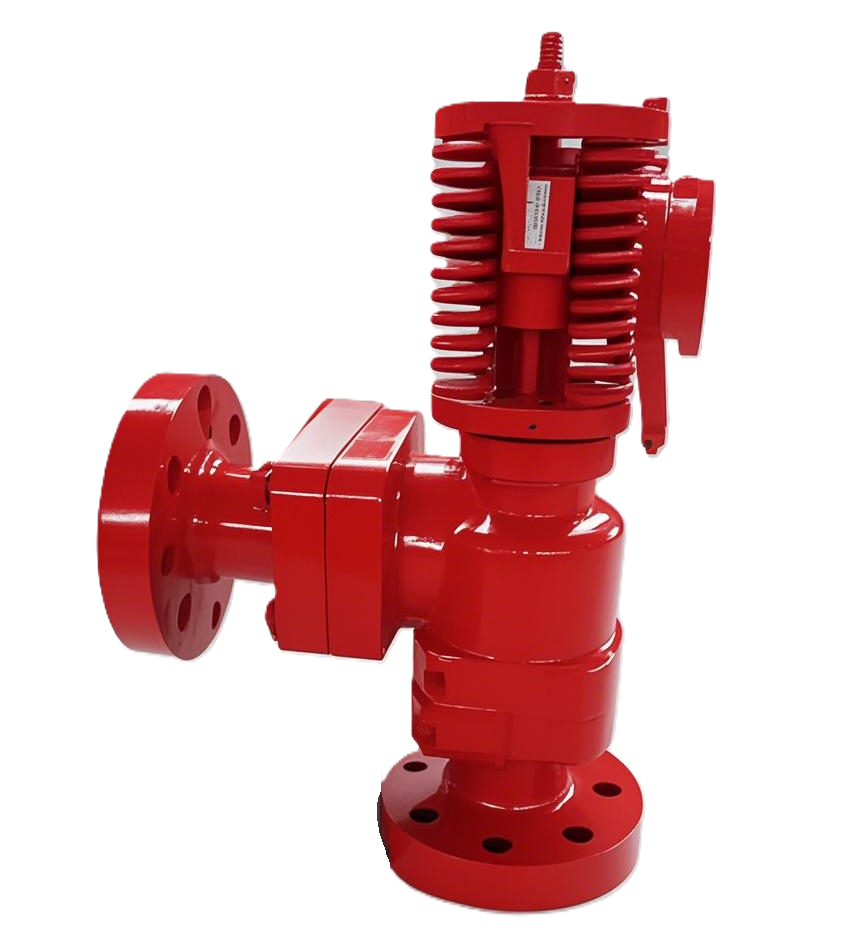

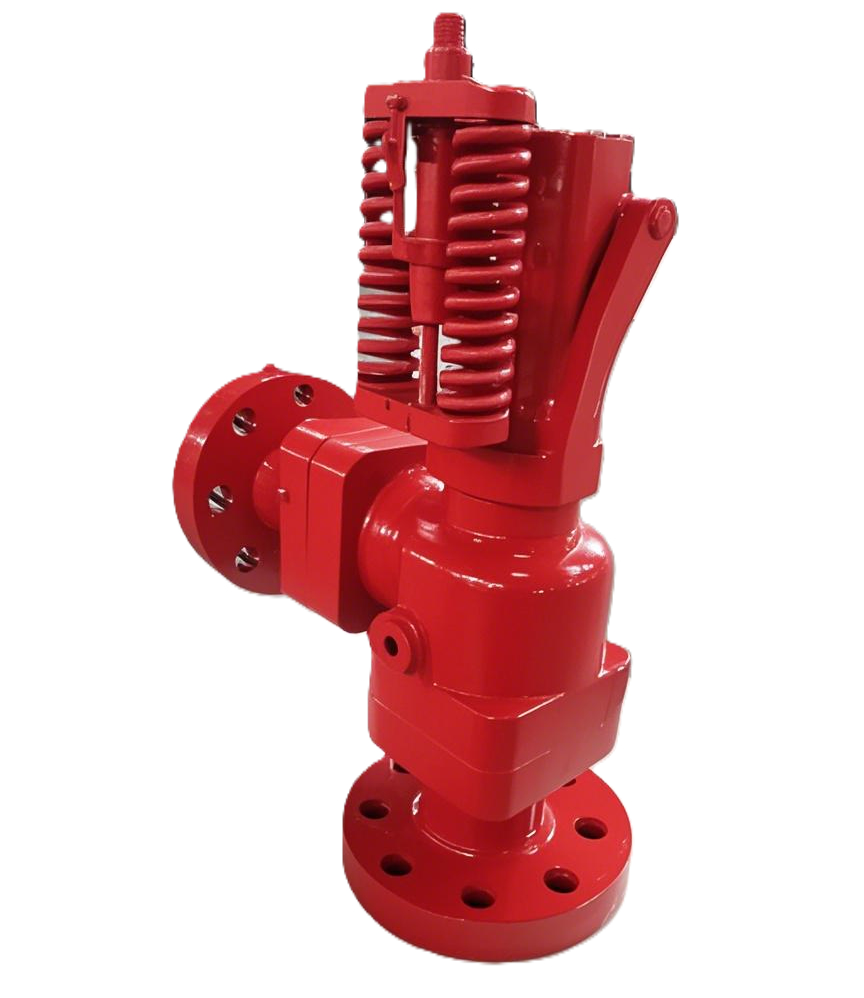

Spring Reset Relief Valve

The spring reset relief valve is made of high-quality high-strength alloy steel and stainless steel through forging and advanced heat treatment processes. It has high strength, corrosion resistance and wear resistance. It is mainly used on drilling mud pumps to protect the mud pump liners and other components from overpressure hazards.

Brand :
OEM
Place of Origin :
Shaanxi, China
Type :
Safety Device
Certification :
GB
Size Available :
2 to 3 inches
Pressure Ratings :
1,500 to 5,000 psi
End Connections available :
Weld or thread union and flange connection
Trim available :
Standard, Sour Gas

Inquire Now

Product categories

New products

Product Details

Description

The valve body of the spring reset relief valve is crafted from high-quality high-strength alloy steel and stainless steel, boasting sufficient strength and sealing performance to withstand system pressure and medium corrosion. The spring is made of top-grade spring steel, and its stiffness and pre-tension can be designed and adjusted according to parameters such as the working pressure and displacement of the relief valve.

The overall structure is relatively simple, small in size and light in weight, which is convenient for installation and maintenance, and is suitable for various installation spaces and positions. The spring, as the main driving element, has stable performance and reliable operation. It can maintain good elasticity and reset ability for a long time, ensuring the normal operation of the spring reset relief vavle.

The adjustment mechanism of the spring reset relief valve is used to adjust the spring's pre-tension, thus setting the opening pressure of the relief valve. The guiding mechanism directs the movement of the valve core, ensuring that the valve core moves in the correct direction during the opening and closing processes.

Specifications

Type	Pressure regulating range (psi)	Connection type
RA-5000	1500-5000	weld or thread union and flange connection

Features

Automatic reset feature eliminates the need for manual intervention, safeguarding the system's safe and stable operation.
With a simple structure, it allows for easy installation, maintenance, and repair.
It is highly responsive, quickly reacting to pressure changes. Once the set pressure is reached, it promptly pushes the valve core open to release pressure. When the pressure drops, it rapidly returns the valve core to its original position, ensuring the system's safety.
It has a wide range of applications. By adjusting the spring's stiffness and pre - tension, it can be used in systems with different pressure levels, temperature ranges, and media, demonstrating strong versatility and adaptability.

Packaging & Shipment

Packaging type: Export wooden box

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
