Casing drilling is an advanced drilling technology that uses casing instead of drill pipe to transmit torque and weight on bit (WOB). It replaces drill bits inside the casing via a wireline system, completely eliminating the repeated tripping operations required in conventional drilling. This technology was first successfully tested by Canada’s Tesco Corporation in 1996, and by 2000, more than 20 development wells had been completed. Although the concept was proposed as early as the 1950s, it was not practically applied until the 1990s due to limitations in technology and equipment at that time.   With the rapid development of new materials, electronic technology and drilling equipment, casing drilling has gradually matured and been widely used in global petroleum engineering, becoming one of the mainstream directions for efficient, low-cost and high-safety drilling.     1. What is Casing Drilling Technology?   The core logic of casing drilling is to use casing instead of drill pipe to apply torque and WOB to the drill bit, enabling bit rotation and drilling. The casing is rotated by a top drive system to directly transmit power. The drill bit is mounted on the front end of a dedicated downhole tool assembly, which is locked at the end of the casing string. The tool assembly is connected to a surface winch via wireline, allowing quick retrieval and replacement of the drill bit. The drilling process is equivalent to running casing: casing is run into the well section by section and is generally not pulled out. Cementing can be performed immediately after drilling is completed, realizing synchronous drilling and completion operations.   A complete replaceable-bit casing drilling system consists of three main components:   Surface running/pulling tools Downhole locking tool string Landing casing When a bit change is required, the downhole locking mechanism is simply released, the tool assembly is quickly pulled out via wireline, a new bit is installed, and the assembly is then run back in and locked at the casing end—all without pulling the casing string.   2. Technical Features of Casing Drilling   Synchronous drilling and casing running: Integrated operation of drilling and completion. Rapid BHA retrieval: The bottom-hole assembly (BHA) can be quickly pulled out via wireline. Continuous casing to bottom: Casing extends from surface to bottomhole throughout the drilling process. One-way casing running: Casing is run in a single direction and is generally not tripped out. Compatibility with conventional operations: Compatible with directional drilling, cementing, logging, coring, well testing and other standard processes. Wireline-based bit change: Bit replacement relies on wireline instead of drill pipe tripping. Modified standard casing: Standard oilfield casing is used, with threads and couplings upgraded for torque resistance. Wellbore strengthening effect: The narrow annulus and casing rotation promote cuttings adhesion to the wellbore wall, forming a "wall-building effect" that enhances wellbore strength. Expandable bit design: Matching blade-expandable bits can open up after drilling to provide a passage for the next section bit, further reducing tripping frequency.   3. Core Advantages of Casing Drilling   Significantly reduce well construction cycle: The integrated design of drill string and casing eliminates frequent tripping and tool changes, enabling synchronous drilling and completion. According to Tesco’s calculations, a 10,000 ft well can save approximately 30% of drilling time. Greatly improve wellbore stability: The casing remains in the wellbore at all times, providing real-time support to the wellbore wall and reducing risks of collapse, lost circulation and stuck pipe. It also eliminates swabbing and pressure surges caused by drill pipe tripping, improving well control safety. Lower comprehensive drilling costs: Eliminates costs associated with drill pipe and drill collar procurement, transportation, inspection and maintenance. Reduces labor, equipment occupancy and material consumption. Lighter rigs also lower moving and operating costs. Improve cuttings transport and hydraulic efficiency: Mud circulation can be maintained continuously during wireline bit changes, preventing cuttings accumulation and kicks. The larger inner diameter of casing reduces hydraulic losses, while the smaller annular area increases upward return velocity, improving wellbore cleaning. Simplify rig structure and reduce equipment investment: Eliminates the need for the monkey board and pipe rack. The derrick height can be reduced and the substructure weight lightened, resulting in smaller, lighter rigs with faster moving, less manpower and lower energy consumption.   4. Operational Considerations   Hole Deviation Control   Without drill collars and centralizers, the casing string is prone to bending under pressure, leading to hole deviation.   Strictly control WOB within the reasonable range of 10–30 kN. Keep rotary speed low, generally within 60–120 r/min, to stabilize the casing string and control deviation. Preferentially use PDC bits for better performance. Ensure the derrick base is installed straight to maintain vertical wellhead. Strengthen intermediate surveying to monitor hole deviation and true vertical depth (TVD) in real time.   Casing Protection   Since the casing string is permanently left in the well, effective protection is critical:   Use casing-specific thread compound to ensure reliable sealing and connection strength. Select casing with internal and external anti-corrosion coatings. Adopt low rotary speed and low WOB to minimize outer wall wear. Appropriately increase the bit nozzle size to reduce pump pressure inside the casing and minimize erosion of the inner wall by drilling fluid.   5. Core Comparison: Casing Drilling vs. Conventional Drilling   Features Conventional Drilling Casing Drilling Mode Multi-stage relay: bit rock breaking → tripping to replace tools → running casing and cementing. Integrated drill string and casing, synchronous drilling and completion. Advantages Mature technology, wide applicability. High efficiency, stable wellbore, low cost, low safety risks. Pain Points Long well construction cycle, moderate wellbore stability, high comprehensive costs. Requires specialized tools (top drive, wireline system), strict deviation control. Application Scenarios Conventional formations, medium-shallow wells, projects with no strict time requirements. Low-cost development of mature oilfields, unstable formations, shallow drilling, projects requiring high-efficiency.     Casing drilling, with its core advantages of efficiency, stability and low cost, fundamentally transforms the traditional drilling workflow through integrated design. It not only shortens well construction cycles and improves wellbore safety, but also significantly reduces comprehensive costs, turning many previously uneconomical well locations from "impossible" to "possible"—especially providing a new solution for the efficient development of mature oilfields. Amid the industry trend of cost reduction, efficiency improvement, safety and green development, casing drilling is becoming the preferred choice for more oilfields and will continue to drive drilling technology toward automation, integration and low-cost operations.

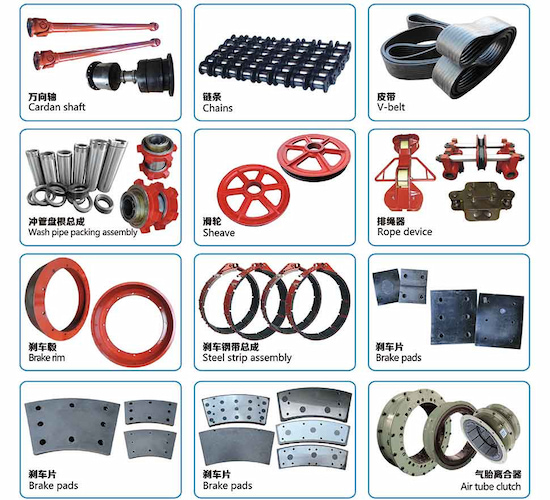

Ⅰ. Core Components and Functions 1. Engine Core Role: As the initial power source of the transmission system, it outputs mechanical energy through fuel combustion or electric drive, and directly connects to the drive shaft via the output shaft, initiating the entire transmission chain. Applicable Scenarios: In mechanically driven or hybrid drilling rigs, it is mostly a diesel engine (e.g., V-type 12-cylinder four-stroke diesel engine); in electrically driven drilling rigs, it can be replaced by an electric motor to directly output power to the drive shaft. 2. Drive Shaft Core Role: A rigid/flexible shaft (mostly hollow steel pipe structure, with length designed according to equipment layout) connecting the engine and gearbox. It transmits the mechanical energy output by the engine to the gearbox without interruption, while adapting to slight vibrations and displacements during equipment operation (compensating for angular deviations via universal joints). Technical Features: It must have high torque-bearing capacity (usually ≥5000N・m) and fatigue resistance. Its surface is heat-treated to enhance wear resistance, preventing fracture due to long-term high-speed rotation. 3. Gearbox Core Role: Through internal gear meshing, it converts the high-speed, low-torque power input by the drive shaft into low-speed, high-torque power (e.g., when driving the drill bit) or medium-speed, medium-torque power (e.g., when driving the drawworks), meeting the working condition requirements of different equipment. Key Functions Shift Regulation: Realizes multi-stage switching of speed/torque through hydraulic or mechanical shifting (e.g., using low gear during drilling to enhance bit rock-breaking force, and high gear during tripping to improve efficiency); Reverse Transmission: Some gearboxes support reverse power output (e.g., when the drawworks lowers the drill string, reverse gears are used to achieve braking and deceleration). 4. Chain Core Role: Connects the output end of the gearbox to the bit drive mechanism (e.g., rotary table, top drive). Through the meshing of the chain and sprocket, it transmits the regulated power from the gearbox to the drill bit, driving it to rotate and break rock. Technical Advantages High torque transmission (a single chain can bear 1000-3000N・m torque), suitable for high-load operations of the drill bit, such as breaking hard rock formations; High transmission efficiency with minimal energy loss, simple structure, and low maintenance costs. Applicable Scenarios: Rotary table transmission of onshore drilling rigs and power transmission of top drive systems. 5. Belt Core Role: Through the friction between pulleys and belts, it diverts and transmits power from the gearbox to the drawworks (for tripping drill string) and mud pump for drilling rig (for circulating drilling fluid). Technical Features Flexible transmission: Can buffer power impacts, reducing wear on the gearbox; Low cost and easy replacement: Compared with chains, belts are lighter and quieter, suitable for medium and low-load scenarios. Limitations: Limited torque transmission (usually ≤1000N・m), prone to slipping under long-term high loads, requiring regular tension adjustment. 6. Hydraulic Motor Core Role: Converts the pressure energy of the hydraulic system into mechanical energy to independently drive the drill bit, drawworks, or mud pump. Technical Advantages Wide speed regulation range: Stepless speed regulation of 0-3000r/min can be achieved by adjusting hydraulic oil flow (e.g., real-time adjustment of bit speed according to formation hardness); Strong overload protection: The hydraulic system is equipped with an overflow valve, which automatically relieves pressure during overload to avoid equipment damage (e.g., protecting the bit and motor during pipe sticking); Flexible layout: No rigid connection required, enabling long-distance driving via hydraulic pipelines (e.g., mud pumps far from the power cabin in offshore drilling rigs). Typical Applications: Fine adjustment of top drives in automated drilling rigs, stable tripping of drawworks, and mud pump driving in small workover rigs. Ⅱ. Working Process of the Transmission System Power Output Stage: The engine or motor starts, outputs mechanical energy to the drive shaft, and the drive shaft stably transmits power to the gearbox by compensating for angular deviations through universal joints. Parameter Regulation Stage: The gearbox shifts according to operational requirements (e.g., drilling/tripping) to adjust speed and torque. Power Diversion Stage: High-torque power output by the gearbox is transmitted to the bit drive mechanism (rotary table or top drive) through the chain, driving the bit to rotate and break rock; Medium-torque power is transmitted to the drawworks and mud pump through the belt; The hydraulic motor independently receives power from the hydraulic system to auxiliary drive the bit, drawworks, or mud pump. Ⅲ. Key Technical Requirements and Maintenance Points 1. Technical Requirements Matching: Components must be adapted according to the "power parameter chain" (e.g., engine output torque ≥ drive shaft bearing capacity, gearbox adjustment range covers equipment requirements) to avoid overload; Reliability: In high-temperature and high-humidity environments, chains/belts must be rust-resistant, hydraulic motors must be leak-proof, and gearboxes must use temperature-resistant gear oil. 2. Maintenance Points Chains/Belts: Check tension weekly; lubricate chains and clean pulleys monthly; Gearbox: Replace gear oil every 500 hours; regularly check gear meshing clearance; Hydraulic Motor: Test hydraulic oil contamination level monthly; replace hydraulic oil filters every 1000 hours to prevent impurities from wearing internal components of the motor. The transmission system realizes full-link control of power from "output-regulation-distribution" through the collaboration of multiple components, and its performance directly determines the operational efficiency and equipment service life of the drilling rig. In modern drilling rigs, the combination of mechanical transmission and hydraulic transmission not only ensures reliability in high-load scenarios but also improves adaptability to complex working conditions, serving as the backbone for efficient operation of the drilling system.
